The Pallet Racking Add-On Bay with Mesh is a versatile storage solution designed to enhance the functionality of existing pallet racking systems. This add-on bay has a sturdy steel frame that seamlessly integrates with the main racking structure.
Installation of the Add-On Bay is straightforward, as it seamlessly attaches to the existing racking system without needing additional tools or modifications. The sturdy construction ensures the add-on bay can withstand the weight of heavy loads, providing reliable storage for a wide range of products.
With the Pallet Racking Add-On Bay with Mesh, businesses can optimise their storage space while improving safety and organisation. Whether used in warehouses, distribution centres, or manufacturing facilities, this add-on bay offers a practical and cost-effective solution for maximising storage efficiency while maintaining visibility and security.
What’s Included

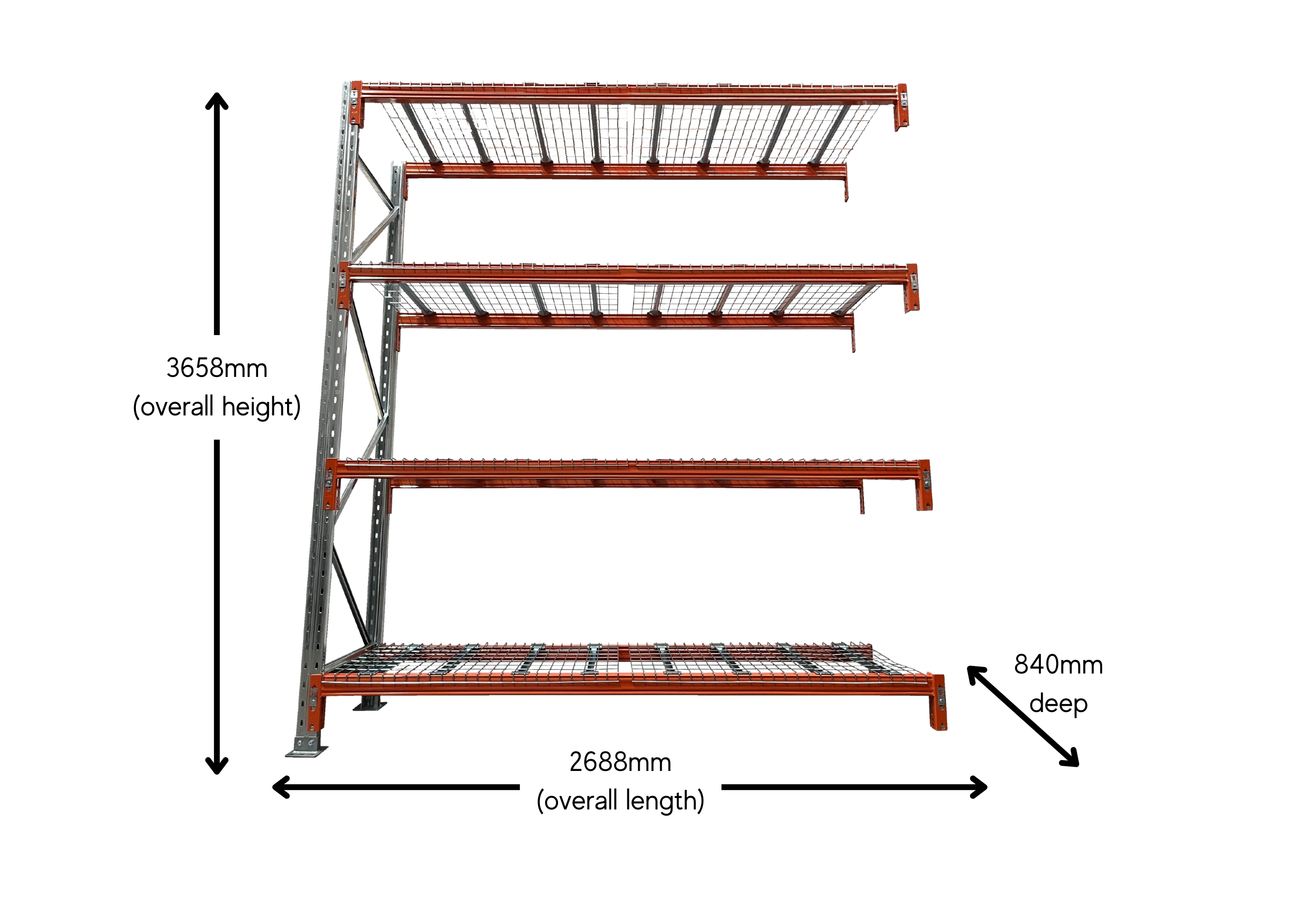

1 x Frame: Each galvanised frame measures 3658mm x 840mm, comes fully assembled and dexion compatible, ready to be installed. These sturdy frames provide the foundation for your pallet racking system, ensuring stability and durability.
Includes Uprights, Bracing, Nuts and bolts, Base Plates, Leveling Plates, and Screw Bolt Floor Fixings.
8 x Beams: Measuring 2591mm x 80mm, each with two safety clips. These beams are designed to support your pallets or items and provide maximum weight-bearing capacity. With eight beams included, you'll have ample support for your storage needs.
8 x Mesh Decks: Our 4 bar Mesh deck, designed to fit standard pallet racking measuring 1250mm x 840mm. With a UDL rating of 1000 kg, our Mesh deck provides reliable and sturdy support for your products. Made from galvanised steel, it is durable and resistant to rust and corrosion. The 4 bar design ensures maximum airflow and visibility, making it ideal for storing and organising various products.
Specifications
Beams:
- Dimensions: 2591mm x 80mm
- Load Capacity: Supports up to 917kg uniformly distributed load (UDL)
- Pitch: 76.2mm
- Connector Lugs: Equipped with 76.2mm pitch connector lugs for secure assembly
Frames:
- Material: Constructed from durable galvanized steel
- Load Capacity: Each frame can hold a maximum weight of 10000KG per side, with a uniform load
- Maximum Beam Height: Bottom beam should not exceed 1800mm for optimal stability
Mesh Decking:
- 1250mm x 840mm. UDL rating of 1000Kgs
- 4 bar, made from galvanised steel
(mesh pitch measurements 100mm x 50mm)
Please note that these specifications are subject to standard manufacturing tolerances.
