Heavy duty cantilever racking is a versatile and durable storage solution for large and heavy items. With its sturdy, single-sided design and adjustable arms, it is perfect for storing long and bulky items such as steel bars, lumber, and pipes. The cantilever arms extending from vertical columns, creating a clear and accessible storage space that allows for easy loading and unloading with forklifts or cranes. The heavy-duty construction and powder-coated finish ensure the longevity and durability of the racking system, making it an ideal choice for warehouses, manufacturing facilities, and other industrial applications. With customisable configurations and a range of sizes and load capacities, heavy duty cantilever racking can be tailored to fit any storage needs.
Not quite what you're looking for?
What’s Included
Single Sided Package Includes: 2 x columns, 2 x single sided bases, cross bracing, arms and all hardware for assembly including levelling plates and floor fixings.
Safe Working Load Sign included
Please note:
Arms per Column
All 3658mm high columns come with 2 arms per column
All 4877mm high columns come with 3 arms per column
All 5719mm high columns come with 4 arms per column
You can purchase additional arms if required.
Not quite what you're looking for?
Specifications
Weight Loading for Columns
3658mm high columns - max load per column with 900mm deep arm = 6800kgs
3658mm high columns - max load per column with 1200mm deep arm = 5400kgs
4877mm high columns - max load per column with 900mm deep arm = 5700kgs
4877mm high columns - max load per column with 1200mm deep arm = 4500kgs
5791mm high columns - max load per column with 900mm deep arm = 5100kgs
5791mm high columns - max load per column with 1200mm deep arm = 4000kgs

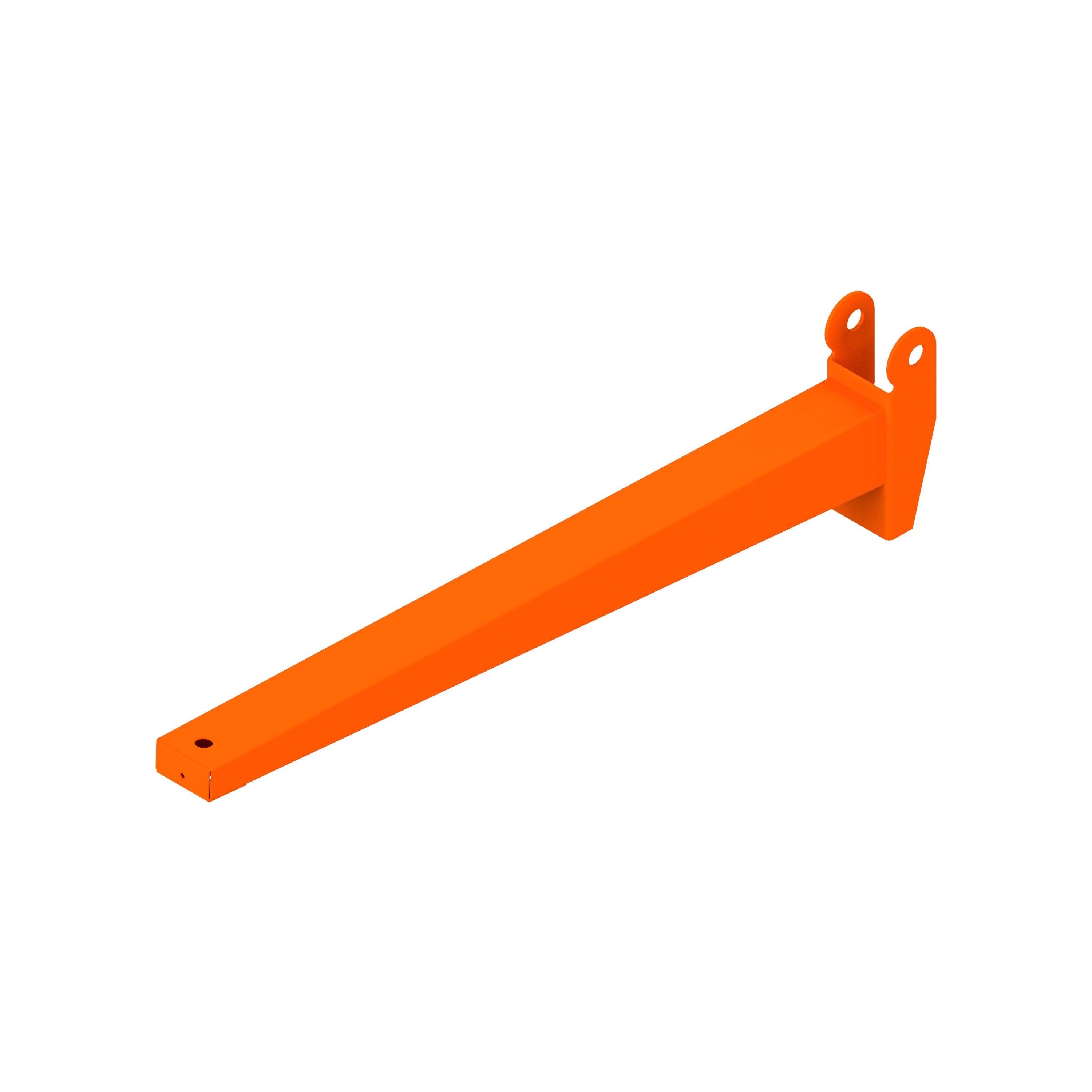

Weight Loading for Arms
Each 900mm arm has a UDL of 1500kgs = 3000kgs per level over 2 columns (not exceeding the max load per column)
Each 1200mm arm has a UDL of 1020kgs = 2040kgs per level over 2 columns (not exceeding the max load per column)
UDL = (Uniformed Distributed Load)
Measurments
Overall depth for 900mm deep = 1290mm
Overall depth for 1200mm deep = 1590mmOverall width for 900mm wide bay = 1110mm
Overall width for 1200mm wide bay = 1410mm
Overall width for 1500mm wide bay = 1710mm
Overall width for 1800mm wide bay = 2010mm
